Gas Roots Flowmeter (Smart Single Display) RXR Series

The gas Roots flowmeter is a volumetric measuring instrument with high precision, high reliability and wide measurement range. It is composed of gas Roots flowmeter, temperature sensor, pressure sensor and volume corrector.
The product is widely used in industrial and commercial users of urban gas and in the application of pipelines. It is suitable for the measurement of non-corrosive gases such as natural gas, gas, propane, air, nitrogen, carbon dioxide, industrial inert gas, etc. It has become the preferred product for the measurement of urban gas.

Parameters
Size
Advantages

Technical parameters

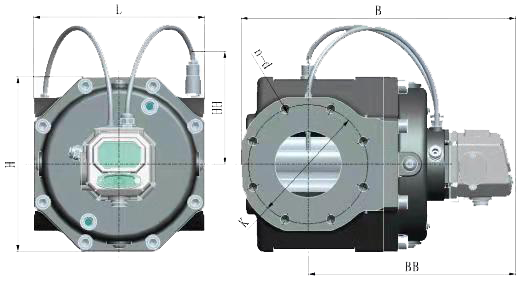

Model and specification	Nominal diameter DN/mm （inch）	Flow specification	L	H	HH	B	BB	K	n-d	Remarks
RXR20	20(0.8")	G6	90	86	-	246	140	75	4-Φ14	M12×30
RXR20	20(0.8")	G10	90	86	-	246	140	75	4-Φ14	M12×30
RXR25	25(1")	G16	144	141	-	303	218	85	4-Φ14	M12×30
RXR40	40(1.5")	G16	170	175	165	338	260	110	4-Φ18	M16×45
		G25	170	175	165	338	260	110	4-Φ18	M16×45
		G40	170	175	165	338	260	110	4-Φ18	M16×45
		G65	170	175	165	338	260	110	4-Φ18	M16×45
RXR50	50(2")	G16	170	175	165	338	260	125	4-Φ18	M16×45
		G25	170	175	165	338	260	125	4-Φ18	M16×45
		G40	170	175	165	338	260	125	4-Φ18	M16×45
		G65	170	175	165	338	260	125	4-Φ18	M16×45
RXR80	80(3")	G100	170	184	165	401	292	160	8-Φ18	M16×45
RXR80	80(3")	G160	258	264	170	414	313	160	8-Φ18	M16×45
RXR100	100(4")	G160	258	264	170	414	313	180	8-Φ18	M16×50
RXR100	100(4")	G250	258	264	170	496	342	180	8-Φ18	M16×50
RXR150	150(6")	G400	460	450	-	718	425	240	8-Φ22	M20×60
RXR150	150(6")	G650	460	450	-	836	484	240	8-Φ22	M20×60
RXR200	200(8")	G1000	460	450	-	934	533	295	12-Φ22	M20×60
